NOBIQ Smart Fish Processing
A Cleaner Fish-Processing Ecosystem
Less handling · Controlled processing · Cleaner preparation
Explore a proposed processing workflow designed for modern fish markets and processing environments.
Concept visual — not an installed NOBIQ system.
Why a controlled workflow matters
Manual preparation can vary with handling, workstation organisation and cleaning practices. The proposed ecosystem separates machine-assisted processing from operator-led preparation.
Proposed workflow
- Fish entry
- Machine-assisted belly opening
- Operator-led entrails removal and internal cleaning
- Operator-controlled washing
- Head preparation; head preserved separately
- Prepared body transferred to the slicer
- Approximately 30 mm slicing, subject to confirmed configuration
Cleaner processing ecosystem
Market introduction: target fish range 0.5–5.5 kg, operator-led washing, head-preserving preparation and approximately 30 mm configured slicing. Suitability and final configuration require confirmation.
How it works
01
Machine-assisted processing
Machine 1 descales and opens the belly or back, according to the agreed configuration. Head cutting is not shown as an automatic function.
02
Operator workstation
An operator cleans the inside, removes gills, washes the fish and prepares or cuts the head on the board.
03
Configured slicing
Prepared fish is fed onto the slicer conveyor for bone-in slicing, subject to confirmed machine and cutting configuration.
Target / proposed configuration
- Target fish weight
- 0.5–5.5 kg
- Configured slicing
- Approximately 30 mm
- Process concept
- Lower-touch / controlled workflow
- Head handling
- Preserved separately
- Washing
- Dedicated operator-controlled washing step
Concept workflow
An illustration of the proposed sequence. Operator-led cleaning and head preparation remain manual. Output dimensions and throughput require confirmation.
Machine demonstrations
Reference operation footage. Suitability depends on fish type, size, condition and the confirmed configuration.
Processing demonstration
Slicing demonstration
Solution components

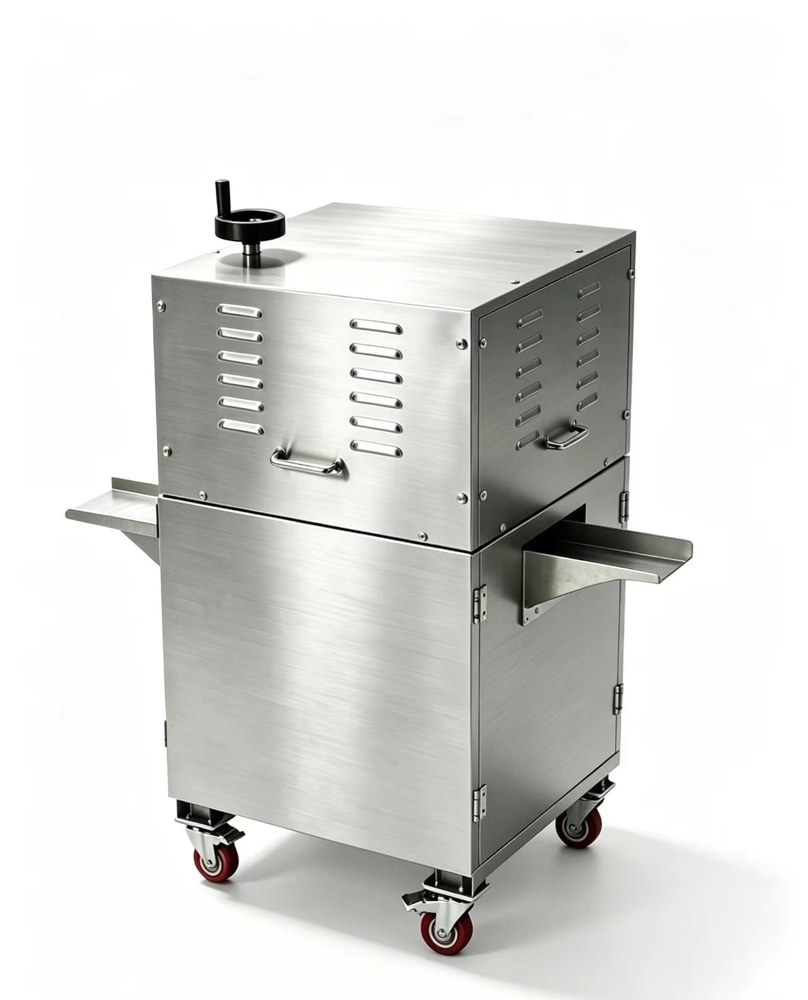

Processing machine

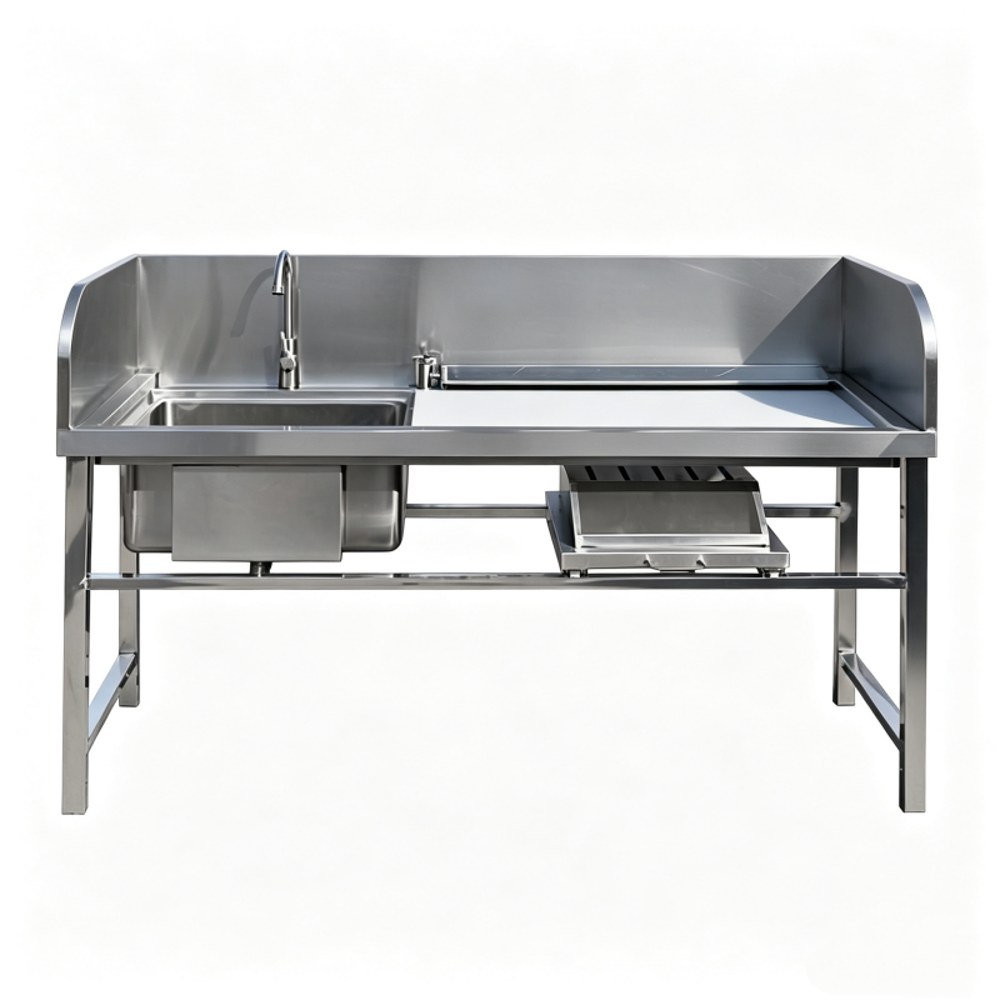

Washing and preparation station

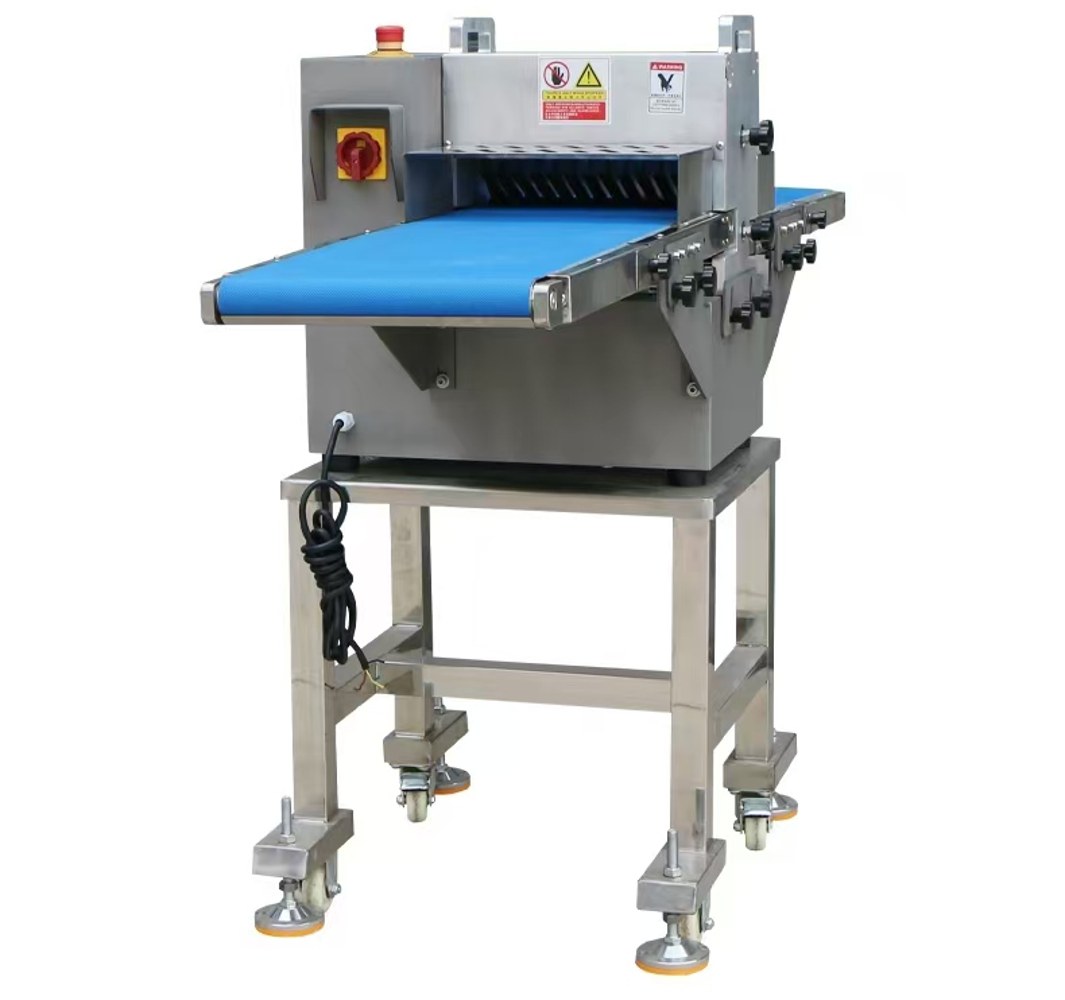

Slicer
Customer benefits
Understand the proposed workflow before discussing a solution for your needs.
- Organised stages for fish preparation.
- Discuss cutting configurations suited to your requirements.
- A clear explanation of machine-assisted steps and operator-led preparation.
Entrepreneur benefits
Explore whether this proposed solution fits your business and operating environment.
- Consider potential use in a fish shop, market processing point or central kitchen.
- Plan space, operators, water and drainage, and electrical requirements.
- Discuss configuration and potential partnership based on your business needs.
Component and site requirements
Processing
Descaling and belly or back opening, according to the agreed configuration.
Workstation
Operator-led internal cleaning, gill removal, washing and head preparation or cutting.
Slicer
Bone-in slicing of prepared fish, subject to confirmed cutting configuration.
Site requirements
Space, electrical supply, water and drainage, operators and cleaning arrangements require site and configuration review.
Proposed configuration — confirmation pending
User-approved proposed values; component/model attribution is pending.
Voltage
220V
Rated power
1.5kW
Material
SS304
Target fish range
0.5–5.5 kg
Frequency
To be confirmed
Phase
To be confirmed
Amperage
To be confirmed
Total connected load
To be confirmed
Earthing and protection
To be confirmed
These values describe a proposed configuration, not a tested whole-system specification. Final electrical requirements and fish suitability must be confirmed before order and installation.
Frequently asked questions
Is the process fully automatic?
No. Machine-assisted steps are combined with operator-led cleaning, gill removal, washing and head preparation.
Will it work with every fish?
Suitability and cutting results must be confirmed using the intended fish and agreed configuration.
Can I buy it directly here?
No. Registering interest requests a discussion; it does not confirm an order, configuration, availability or delivery.
Register Interest / Pre-order
This solution is currently in market-introduction stage. Submitting this form registers your interest and helps NOBIQ understand your processing requirements. NOBIQ will contact you to discuss configuration, availability, commercial terms and next steps.
